Mounting the Hydrobushing Rails


The rail can be inserted into the bushings on the carriage (not shown here) and then attached to the base via the mounting scheme shown above.

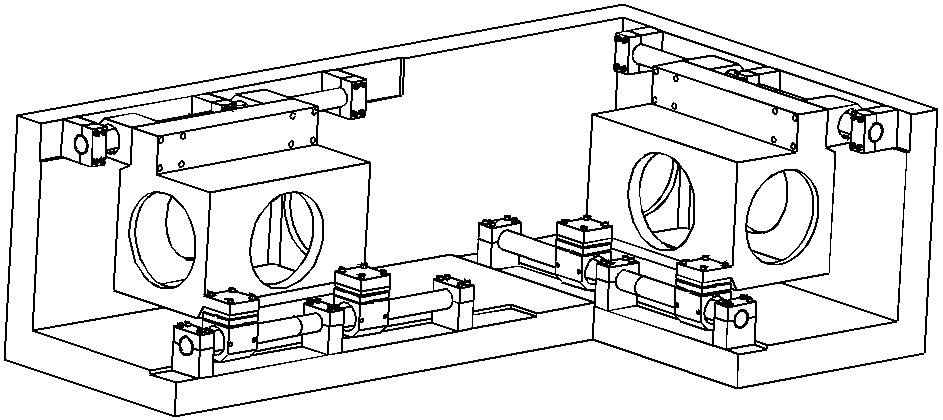

A Crude Carriage Concept

The same part or at least casting could be used for the Work Piece and Grinder Carriages.
